Table 1 – Overview of the data collected (main parameters) for each estuary, indicating the time periods and number of stations (in between brackets)
For the Scheldt and Elbe topo-bathymetric grids were directly available, respectively for the years 2001 and 2006. The Scheldt grid has a resolution varying between 5 x 5 m and 20 x 20 m, the Elbe grid has a resolution of 10 x 10 m. For the Weser and Humber, point datasets were delivered which still needed to be interpolated to grids. For the Weser the TopoToRaster interpolation method was used (ArcGIS software), while for the Humber (single beam data) the digipol methodology (Qinsy software) was applied, which is especially developed for single beam datasets. The input datasets were respectively from 2009 and 2005 for the Weser and Humber, and interpolation grids were created with a resolution of respectively 20 x 20 m and 10 x 10 m.
To make salinity data comparable between the different estuaries all salinity data were converted to PSU/ppt¹ values. For the Scheldt chlorinity data were provided which were converted to ppt values according to (Forch et al., 1902):
¹ PSU values represent the conductivity ratio of a water sample compared to a standard KCl solution whereas ppt values represent grams of salt per kilogram solution. Although the definition for both units is different, the difference in absolute values between PSU and ppt is small and negligible.
Salinity = 0.03 + (1.805*Chlorinity)
The Elbe dataset contained conductivity values. Based on the UNESCO formula (Fofonoff and Millard, 1983) conductivity values were converted to PSU values. For the Weser, data were directly provided as PSU values and for the Humber the dataset contained ppt conductivity values.
For every sampling station a mean value was calculated. By connecting the mean values of all stations a mean salinity profile was constructed for every estuary. To cover the variation in salinity caused by high and low freshwater discharges respectively the P(5%) (percentile 5%) and P(95%) (percentile 95%) values were calculated for every station. Connecting the P(5%) and P(95%) values results in a longitudinal salinity profile for respectively a flushing event and a dry event, which can be considered as representative for respectively a winter and summer situation.

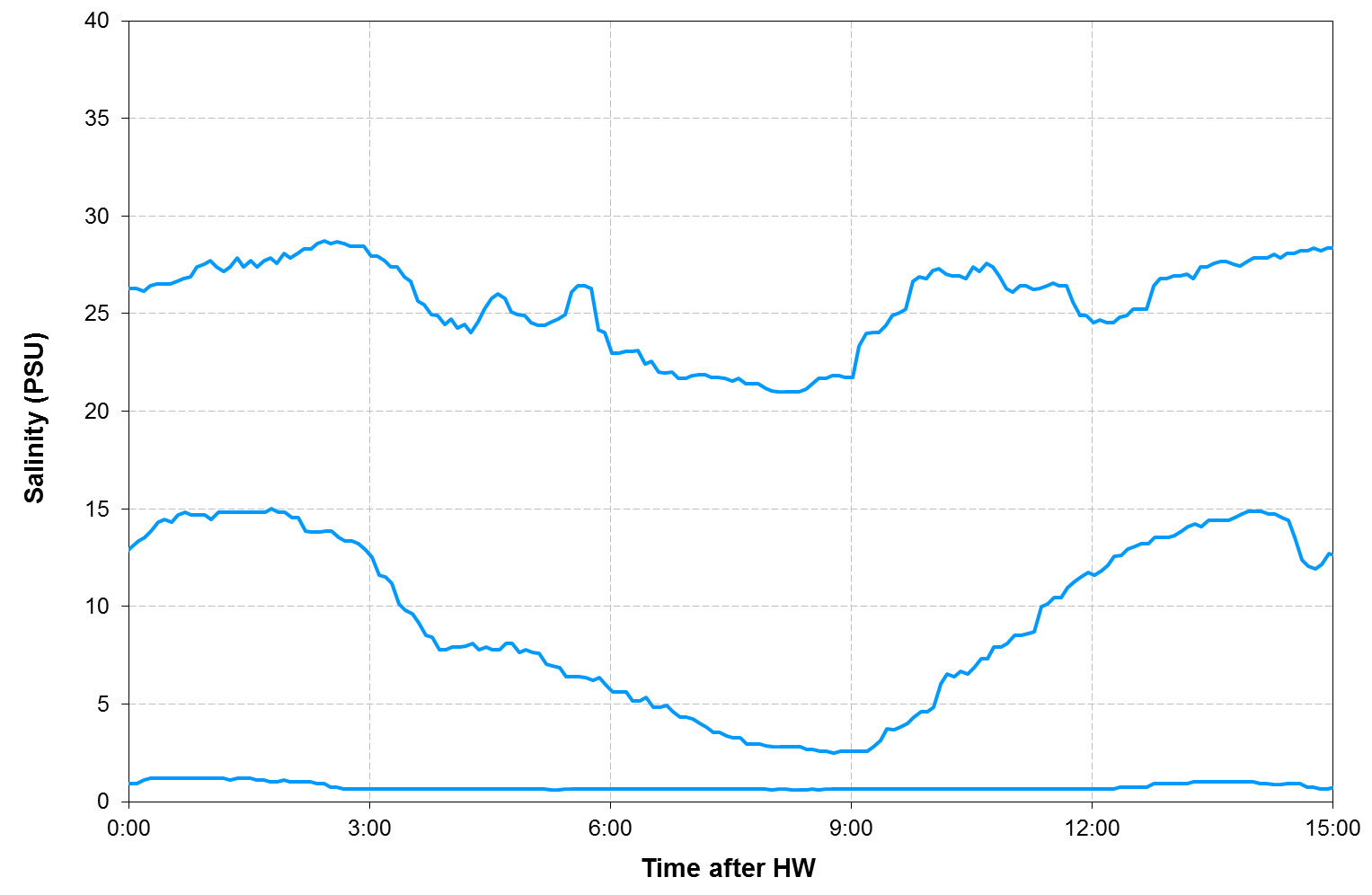

Differences in salinity are not only explained by variations in riverine discharge, but are also influenced by the tidal intrusion in the estuary. As a consequence, measured salinity values at low water slack will be lower than during high water slack (Figure 1 and Figure 2). To cover this variation in salinity between low and high water slack two envelopes were created (one for a flushing and one for a dry event) where the lower limit of the envelopes represents low water slack and the upper limit high water slack. Comparable to the methodology for a flushing/dry event, percentile values were determined for the envelope limits. To determine the threshold values for the percentiles 3 salinity stations in the Elbe (continuous data available for all stations) were selected with one station close to the open sea, a station where the variation in salinity between P(5%) and P(95%) is the largest, and a station close to the freshwater zone. For these 3 stations two days (15/02/2004 and 20/10/2004) were selected for which the mean daily salinity is comparable with the P(5%) respectively the P(95%) value (Figure 1 and Figure 2). For each day the minimum and maximum values were selected which correspond with the salinity at respectively low and high water slack. Based on the continuous dataset over a period of one year the percentiles values were determined which correspond with the found minimum and maximum values for both days. Finally, for a flushing event the envelope boundaries were found at P(0.2%) and P(30%), for a dry event at P(70%) and P(99%). The same threshold values were used to construct the envelopes for the other estuaries.
Table 2 – Overview of the available SPM datasets and sampling methodology
Within this study, a mean SPM value is calculated for each location based on all available measuring campaigns. Only the sampling locations are included which were measured every campaign (or campaigns in the same time period of 2 weeks in case of the Humber). In this way, mean SPM values are comparable for each selected location. It is important to note that the mean SPM values for the datasets Scheldt1, Scheldt2 and Humber are based on SPM data sampled during various time steps within a tidal cycle, whereas for the datasets Scheldt 3 and Elbe/Weser sampling took place at a fixed time in the tidal cycle (respectively at half tide and low water, see Table 2). The variation on the calculated mean SPM value is presented by the standard deviation. Within the interestuarine comparison (§5), dataset Scheldt1 was used for the Scheldt as this dataset can be compared with the surface SPM datasets of the other estuaries (see Table 2).
The discharges at the different stations are daily discharges. An overview of the time periods for which discharge data were available is given in Table 1. Based on the daily discharges a mean value was calculated for the total river discharge into each estuary. Moreover, the P(5%) and P(95%) values were calculated returning a low and high freshwater discharge value, representative for respectively a dry and a flushing event in the estuary. The calculated mean, P(5%) and P(95%) discharge values are input parameters for the cubage and residence time calculations (see respectively §3.2.1 and §3.2.5).
Scheldt
For the selected marsh site in the Scheldt estuary, platform elevation data were available for the years 1931, 1951, 1963, 1992, 2004 and 2010. For the years 1931, 1951, 1963 and 1992 topographic surveys (in a grid) were carried out and data were provided as Digital Elevation Models (DEM) with a 20 x 20 m grid resolution. For the more recent time steps (2004 and 2010), DEMs with a 2 x 2 m resolution were available based on LIDAR data. The DEMs based on LIDAR data were corrected for vegetation.
All provided DEMs include the tidal channel network. To exclude grid cells located within the tidal channel network we delineated the tidal channel network for 1931 and 2010 based on aerial photographs. The channel network for 1931 and 2010 were merged and used as a mask to exclude grid cells located within the tidal channel network. As no significant changes occurred between the tidal channel networks in 1931 and 2010 we also used this mask for the intervening times steps. Besides the mean platform elevation of the selected site, additionally the standard deviation was calculated representing the spatial variation in marsh platform elevation.
Historical data on MHWL were derived from the nearby water level station at Bath. Besides the yearly MHWL also the yearly mean high water levels at spring tide (MHWLS) were available for this station.
From 1931 to 2010 the marsh evolved from a low elevated tidal marsh (mean platform elevation below MHWL) towards a high elevated tidal marsh (mean platform elevation above MHWL).
Elbe
For the Elbe marsh site, platform elevation data were available for 1958, 1966, 1977, 1997 and 2008. Elevation data were provided as point data (xyz), located along transects perpendicular to the Elbe main channel (same transects for every time step). To calculate mean platform elevations, DEM were built (1 x 1 m) for every time step using the TopoToRaster interpolation in ArcGIS 9.2. Based on the constructed DEM, mean values and standard deviations were calculated of the marsh platform, and this for every time step.
Historical data on MHWL were derived from the nearby water level station at Osteriff. No data on spring tide were available.
During the considered time period (1958 – 2008), the selected marsh site evolved from a low elevated tidal marsh (mean platform elevation below MHWL), towards a high elevated tidal marsh (mean platform elevation above MHWL)
